Baron G58
    • Maximum Range
    • 1,480 nm
    • Maximum Cruise Speed
    • 202 ktas
    • Maximum Passengers
    • 6
    • Useful Load
    • 1,494 lb
    • Takeoff Ground Roll
    • 1,373 ft
Pinnacle of Piston Aircraft Ownership

The Baron® G58 is the perfect balance of horsepower combined with peace-of-mind, twin-engine redundancy and security. With seating for six, large cargo doors and two baggage compartments, the Baron G58 offers great flexibility for both business and pleasure.

Exterior

Divider

Where Functionality and Beauty Meet

Move your mouse over the image to pause.

Interior

divider

Configurable and Comfortable

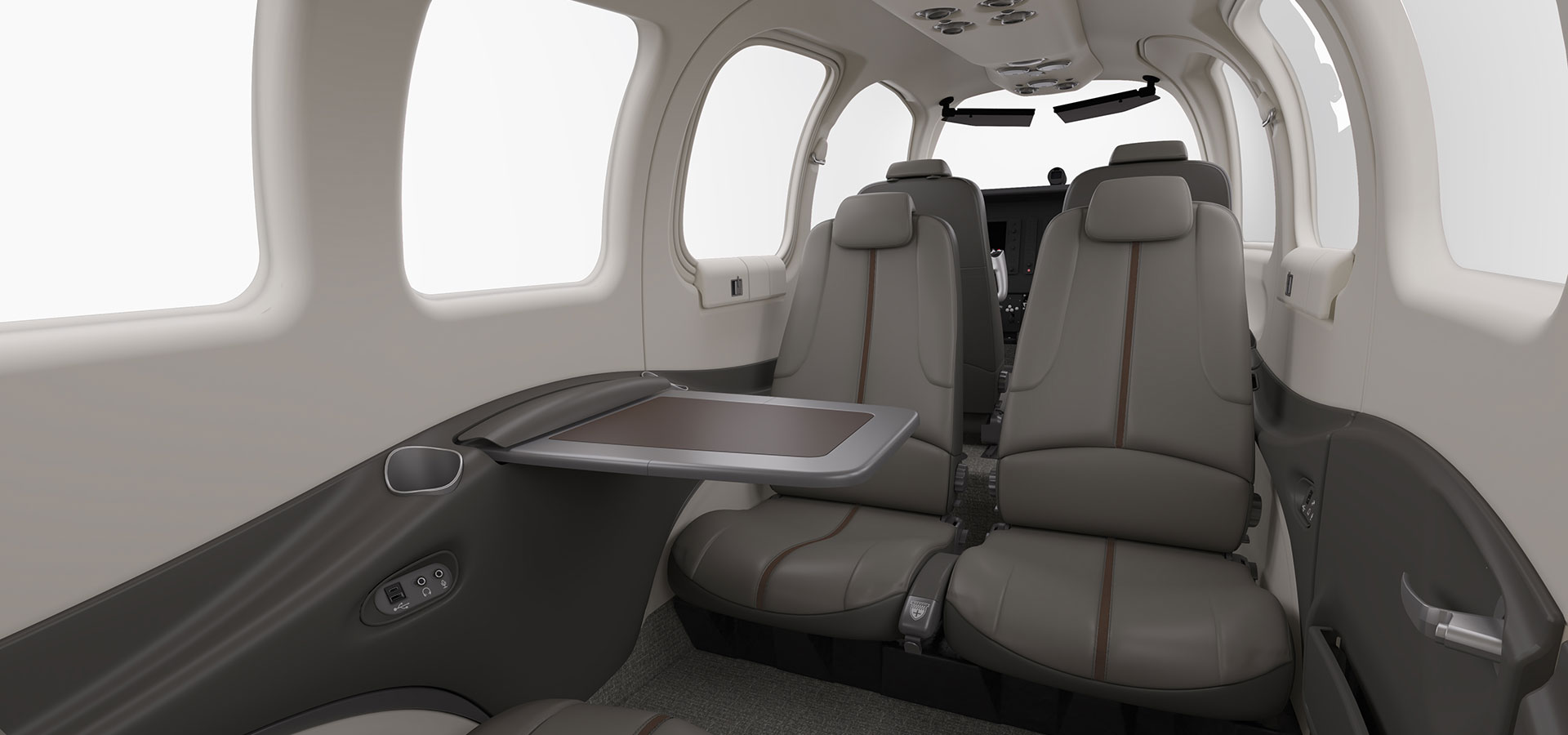

The Baron G58 is complete with comforts you’d expect from an inviting retreat. The 137-cubic-foot cabin features four seats in a club configuration, complete with lumbar support and headrests. The cabin is configurable to fit your needs for legroom, large baggage or cargo.

Avionics

Divider

Complex Avionics, Simple to Fly

Smoother Trips With A Smarter Flight Deck

The Baron G58 comes standard with a fully integrated Garmin® G1000® electronic flight display system. This state-of-the-art technology reduces pilot workload and greatly improves situational awareness to ensure you always fly with confidence.



Fly With Confidence

The Primary Flight Display (PFD) replaces many traditional cockpit instruments ensuring that all flight-critical information is displayed at the pilot’s fingertips. The Class-B Terrain Awareness and Warning System (TAWS) will alert pilots of potentially hazardous obstacles and conflicts in terrain.

Increased Precision

A digital Attitude Heading Reference System (AHRS) and an Air Data Computer (ADC) provide attitude and air data information to the system. AHRS replaces pneumatic gyros by using comparative inputs from GPS, a magnetometer and the air data computer to achieve increased levels of reliability and precision.

Standard Features
  • Primary Flight Display (PFD)
  • Multi-Function Display (MFD)
  • Garmin’s GFC 700 Integrated Autopilot
  • Altitude and heading Reference System (AHRS)
  • Air Data Computer (ADC)
  • Dual WAAS GPS Receivers with LPV Approach Capability
  • Mode “S” Transponder with Flight ID and Traffic Information Service (TIS)
  • Audio/Marker System Digital/Analog
  • Engine Indication on the PFD and MFD in Revisionary Mode
  • XM Radio and GWX 68 Satellite Color Weather Radar with Selectable Scan
  • Terrain Awareness Warning System (TAWS-B)
  • Barometric Vertical Navigation (VNAV)

Specifications

Divider

Competitive Drive



Dimensions
Length 29 ft 10 in (9.09 m)
Height 9 ft 9 in (2.97 m)
Wingspan 37 ft 10 in (11.53 m)
Wing Area 199 sq ft (18.51 sq m)
Wheelbase 8 ft 11 in (2.72 m)
Tread 8 ft 11 in (2.72 m)
Cabin Interior
Height 50 in (1.27 m)
Width 42 in (1.07 m)
Length 12 ft 7 in (3.84 m)
Maximum Passengers 6
Baggage Capacity
Weight 420 lb (190.5 kg)
Volume 28 cu ft (0.79 cu m)
Single Pilot Certified Yes

Weights
Maximum Ramp Weight 5,524 lb (2,506 kg)
Maximum Takeoff Weight 5,500 lb (2,495 kg)
Maximum Landing Weight 5,400 lb (2,449 kg)
Maximum Zero Fuel Weight N/A
Usable Fuel Capacity
Weight 1,164 lb (528 kg)
Volume 194 gal (734 l)
Basic Operating Weight 4,030 lb (1,828 kg)
Useful Load 1,494 lb (678 kg)
Maximum Payload 1,370 lb (621 kg)
Full Fuel Payload 330 lb (150 kg)
Performance
Maximum Cruise Speed 202 ktas (374 km/h)
Maximum Range 1,480 nm (2,741 km)
Takeoff Distance 2,345 ft (715 m)
Ground Roll 1,373 ft (418 m)
Landing Distance 2,490 ft (759 m)
Service Ceiling 20,688 ft (6,306 m)
Maximum Climb Rate 1,730 fpm (527 mpm)
Maximum Limit Speed 223 kias (413 km/h)
Powerplant
Manufacturer Cont.
Type IO-550-C
Power Rating 300 hp (224 kW)
