Bonanza G36
    • Maximum Range
    • 920 nm
    • Maximum Cruise Speed
    • 176 ktas
    • Maximum Occupants
    • 6
    • Useful Load
    • 1,038 lb
    • Takeoff Ground Roll
    • 962 ft
Built for Adventure

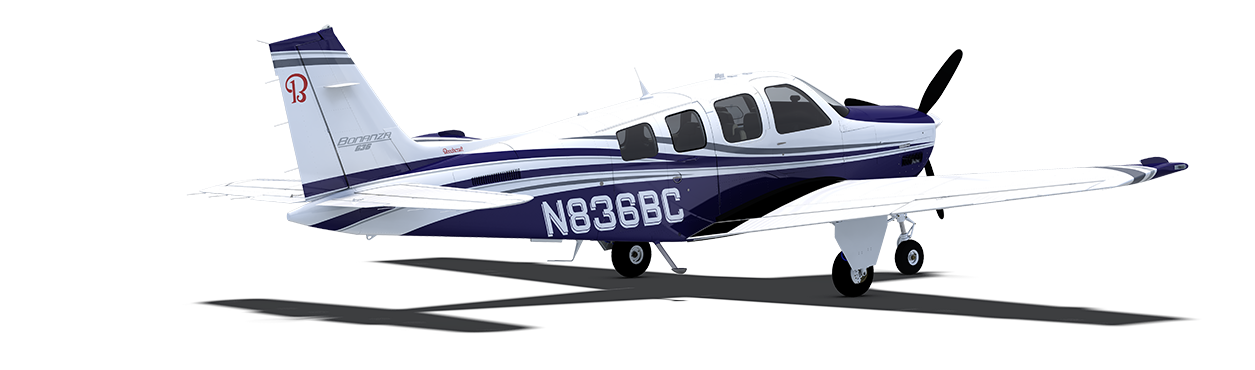

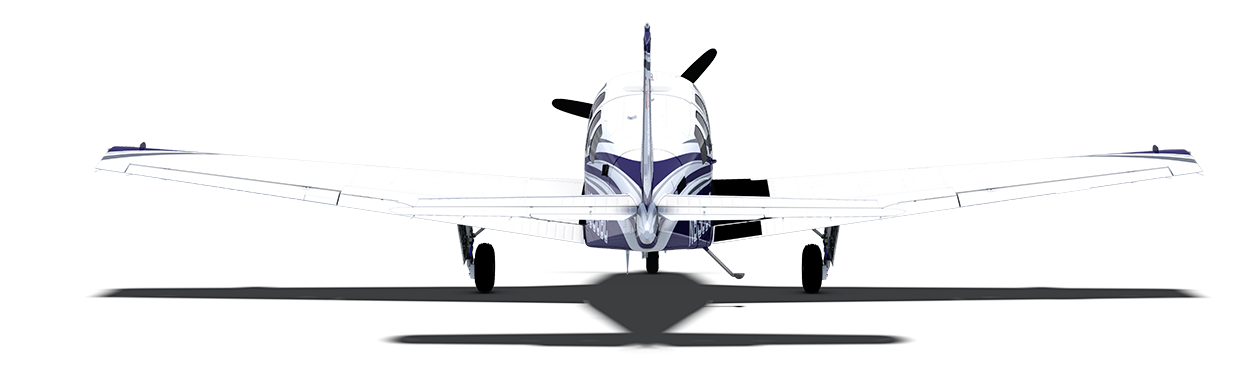

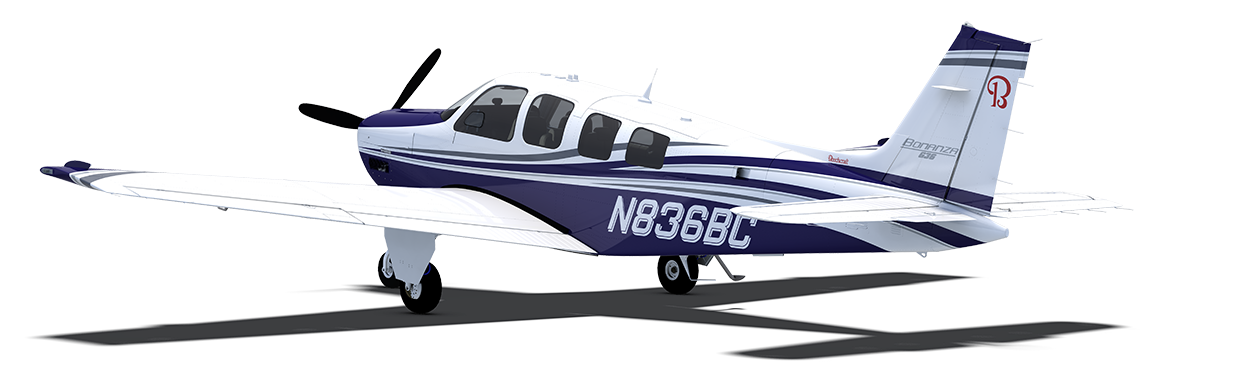

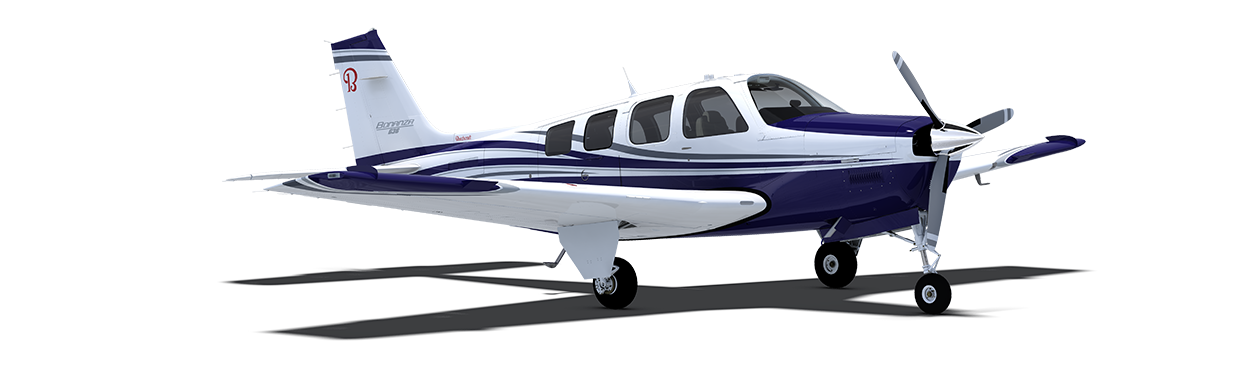

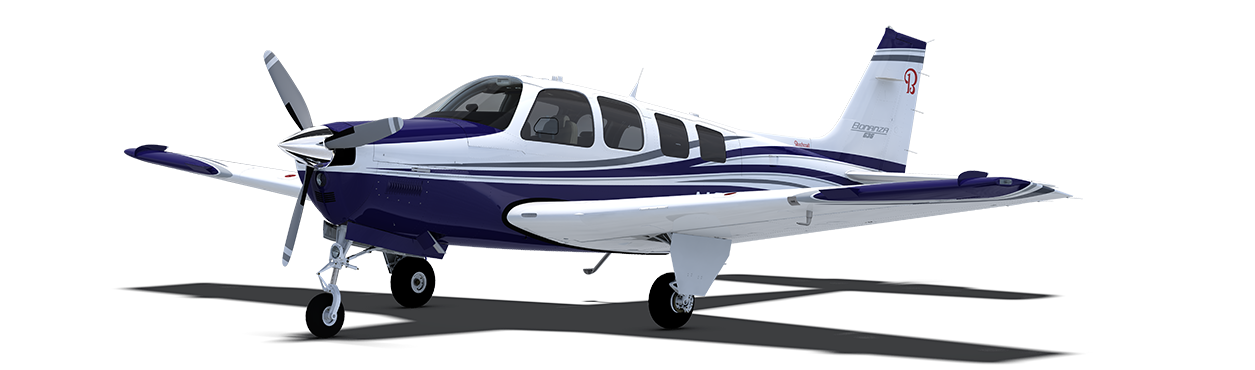

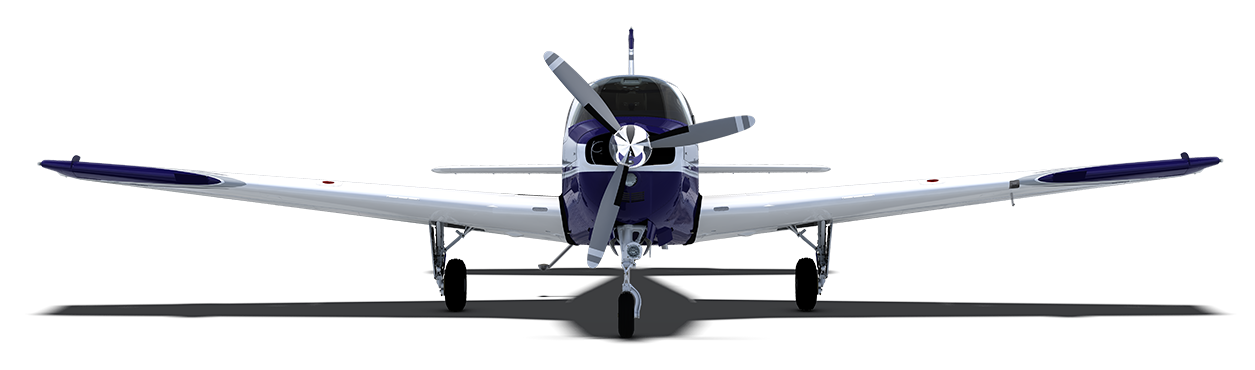

The Bonanza® G36 is the aspiration of any pilot who desires unmatched craftsmanship. This piston-engine powerhouse is designed and built to be certified in the rugged utility category. With first-class technology and comfort and world-class quality, your Bonanza G36 is ready for any adventure.



Proven and Practical

Move your mouse over the image to pause.



Comfort and Convenience

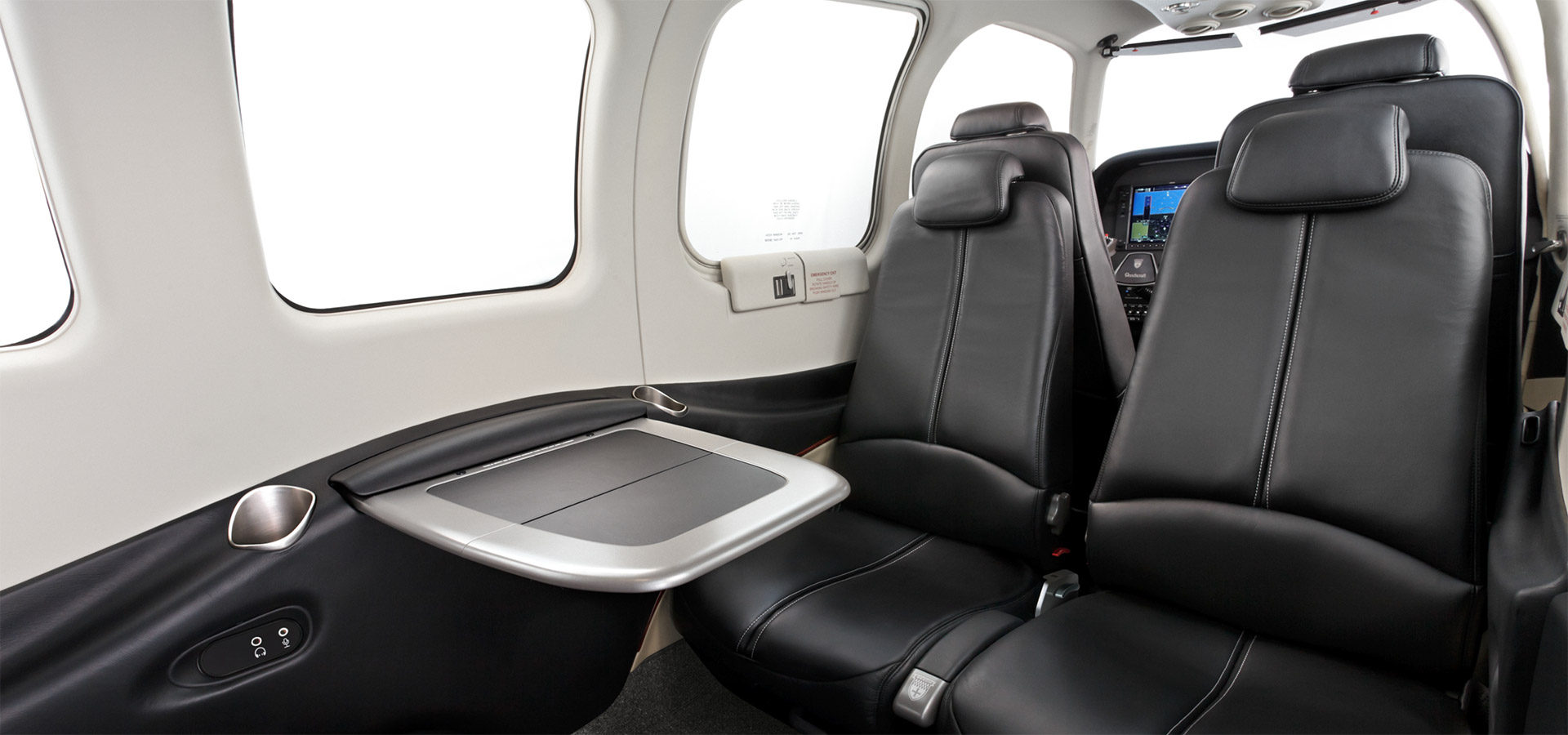

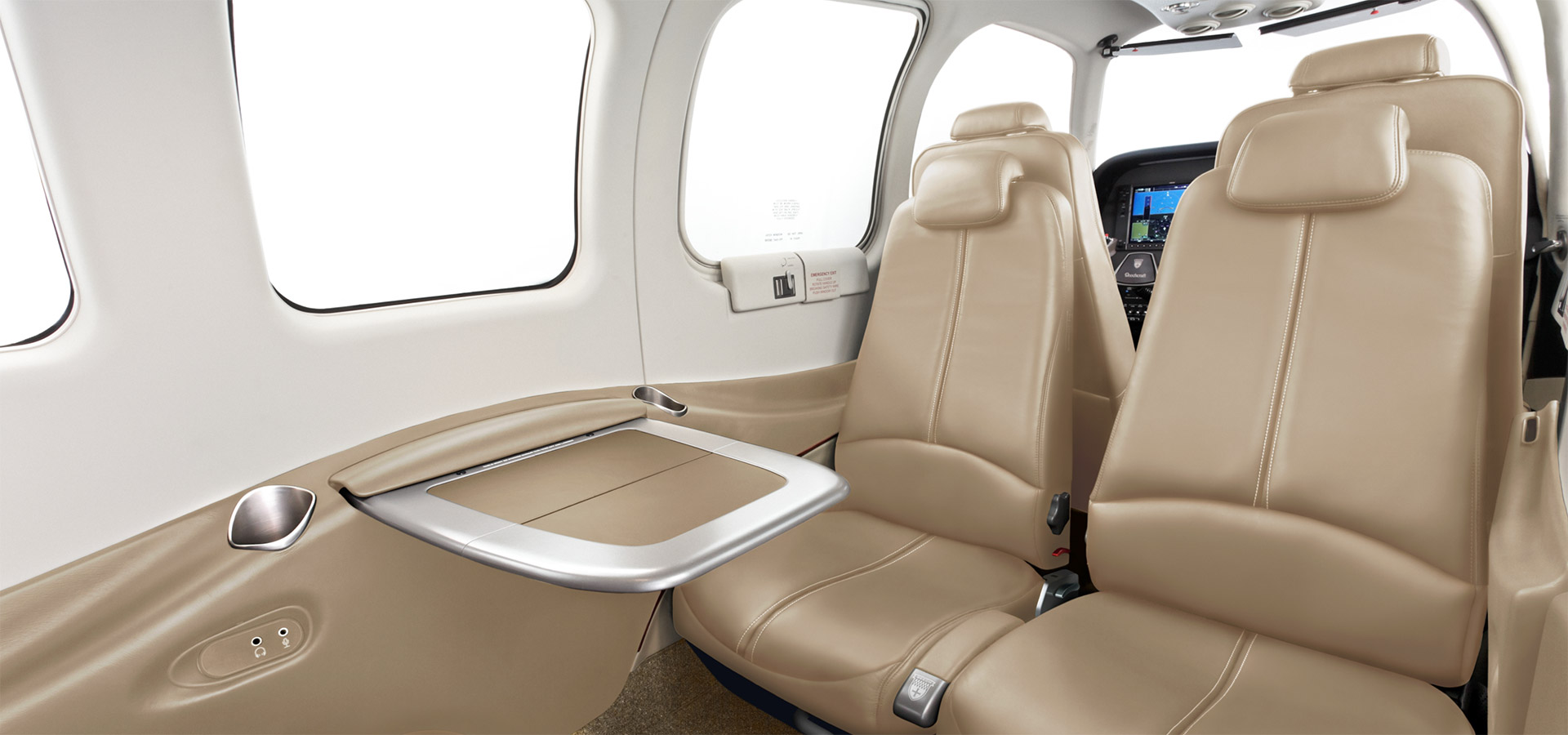

The Bonanza G36 treats passengers to the most comfortable ride found in any piston-engine aircraft without sacrificing hauling convenience. The spacious interior can quickly be reconfigured into four different layouts, making it simple to accommodate passengers or special cargo.



Situational Awareness at Its Finest

When You Fly One, You'll Want One

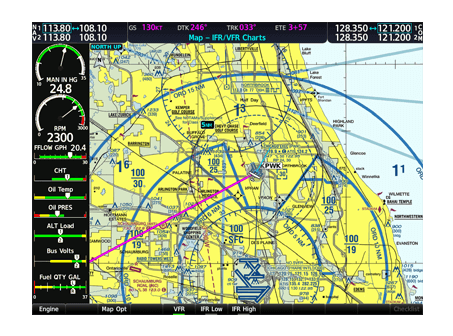

The cockpit of the Bonanza G36 is laid out to reduce pilot workload and greatly improve situational awareness. The flight deck sports fully integrated Garmin® G1000® avionics, including an automatic flight control system. The all-glass system presents flight instrumentation, moving maps, navigation, communication and identification on two high-resolution displays.


Situational Awareness

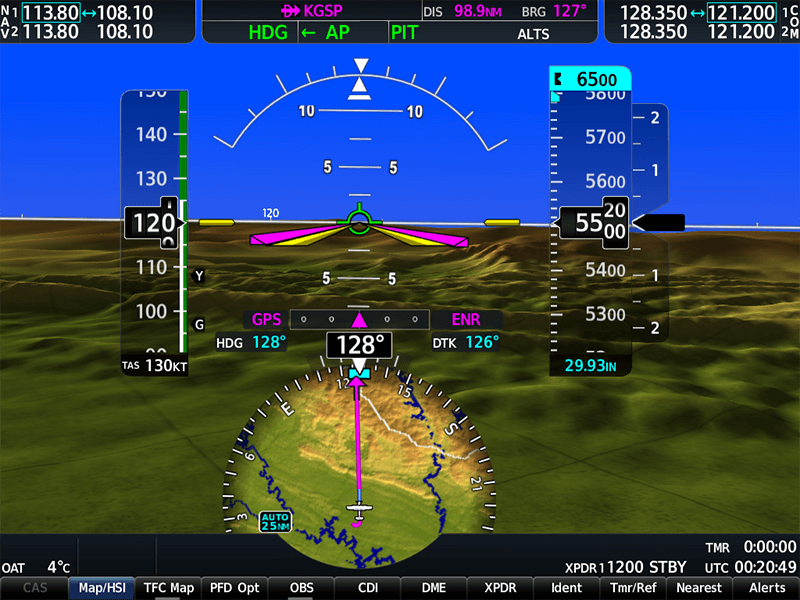

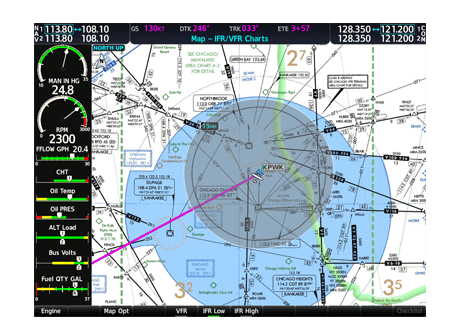

When darkness, fog, rain, haze or solid IFR conditions keep you from seeing clearly out the windscreen, Garmin G1000 avionics features virtual reality displays showing pathways in the sky. It also provides a supplemental 3D depiction of ground and water features, airports, obstacles and traffic.

Data Sharing

Every component of the Garmin G1000 avionics shares data with every other component through a High Speed Data-Base (HSDB) Ethernet connection. Ethernet allows one wire or bundle of wires to communicate with all of the other components. Everything in the system is digital, and information can flow in both directions.

Standard Features
  • Primary Flight Display - GDU 1040
  • Multi-Function Display - GDU 1045
  • GFC 700 three-axis autopilot
  • Dual WAAS GPS Receivers with LPV Approach Capability
  • TAWS-B - Integrated Class-B Terrain Awareness and Warning System
  • TAS - GTS 820 Traffic Advisory System
  • XM Receiver - GDL 69A (North America Only)
  • Garmin SafeTaxi (US Only) and Garmin FliteCharts
  • Mode “S” Transponder with Flight ID



Heroic Power


Length 27 ft 6 in (8.38 m)
Height 8 ft 7 in (2.62 m)
Wingspan 33 ft 6 in (10.21 m)
Wing Area 181 sq ft (16.82 sq m)
Cabin Interior
Height 50 in (1.27 m)
Width 42 in (1.07 m)
Length 12 ft 7 in (3.84 m)
Maximum Occupants 6
Baggage Capacity
Weight 70 lb (31.8 kg)
Volume 10 cu ft (0.28 cu m)

Maximum Ramp Weight 3,663 lb (1,662 kg)
Maximum Takeoff Weight 3,650 lb (1,656 kg)
Maximum Landing Weight 3,650 lb (1,656 kg)
Usable Fuel Weight 444 lb (201 kg)
Usable Fuel Volume 74 gal (280 l)
Basic Empty Weight 2,625 lb (1,191 kg)
Useful Load 1,038 lb (471 kg)
Maximum Payload 1,025 lb (465 kg)
Full Fuel Payload 594 lb (269 kg)
Maximum Cruise Speed 176 ktas (326 km/h)
Maximum Range 920 nm (1,704 km)
Takeoff Distance 1,913 ft (583 m)
Ground Roll 962 ft (293 m)
Landing Distance 1,450 ft (442 m)
Ground Roll 920 ft (280 m)
Service Ceiling 18,500 ft (5,639 m)
Maximum Climb Rate 1,230 fpm (375 mpm)
Maximum Limit Speed 205 kias (380 km/h)
Stall Speed 59 kcas (109 km/h)
Manufacturer Continental Motors
Model IO-550-B
Power Output 300 hp (300 hp)
Manufacturer Hartzell
Description 3 blade metal, constant speed
