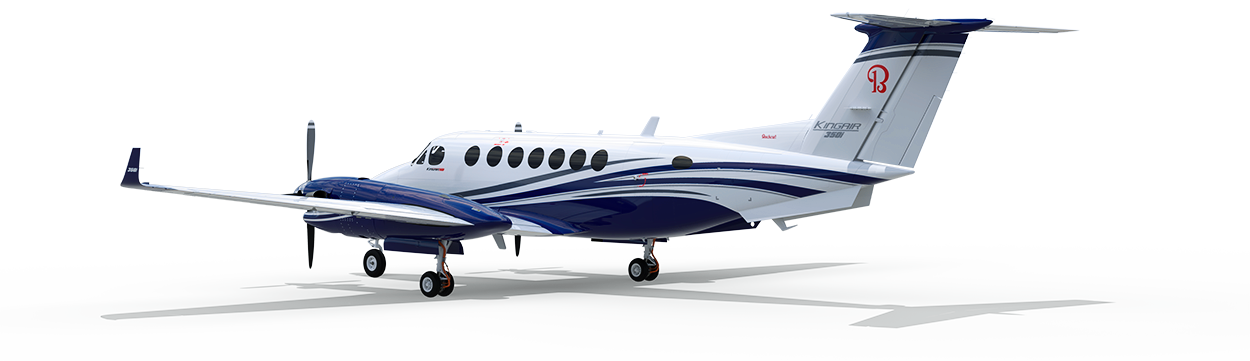

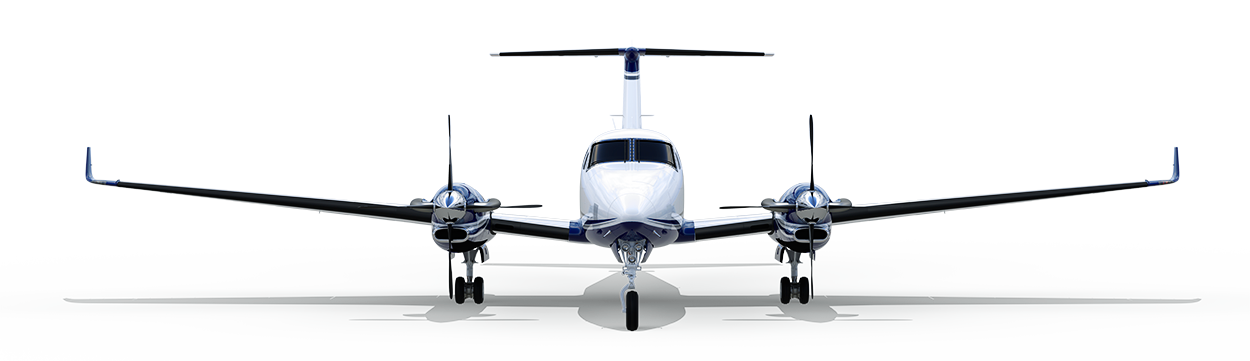

King Air 360
    • Maximum Range
    • 1,806 nm
    • Maximum Cruise Speed
    • 312 ktas
    • Maximum Occupants
    • 11
    • Useful Load
    • 5,145 lb
    • Takeoff Field Length
    • 3,300 ft
The Next King Rises

With updates to the airframe, avionics and interior, the BEECHCRAFT KING AIR 360 turboprop represents the latest upgrade to one of the sky’s most iconic aircraft. Additional features and benefits include an enhanced digital pressurization system, Onboard Maintenance System updates, a full regime autothrottle system, and six new interior schemes. The latest iteration in the best-selling King Air family is designed for comfort and built for adventure.

Cabin improvements bring increased comfort and elegance to the King Air 360 turboprop. Most notable is a lower cabin altitude resulting from higher cabin pressure. The latest model also features contemporary design cues found in luxury SUVs, plus reshaped cabinetry, resculpted sidewalls with pinhole lighting, upgraded seat design, illuminated cupholders and low-profile air/light adjusters.


See What's New


Need Financing?
Strong relationships create convenient solutions. Textron Financial can deliver simple financing solutions tailored to your needs.

Discover More →

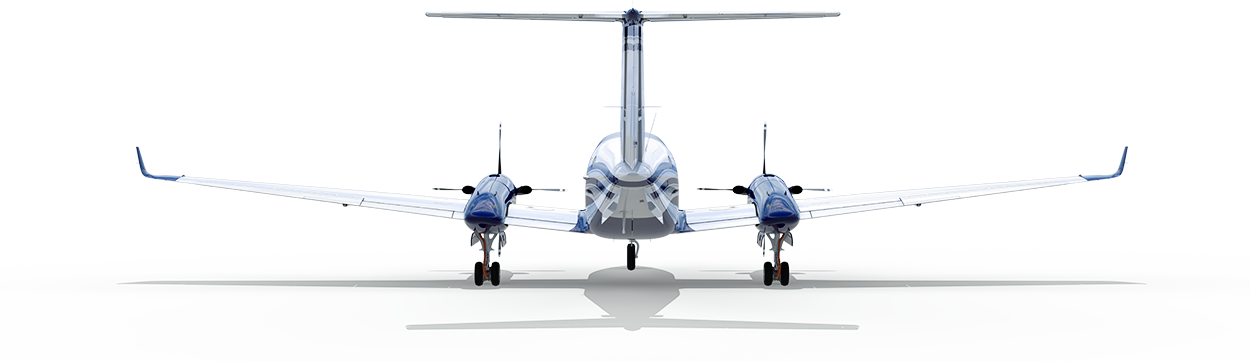

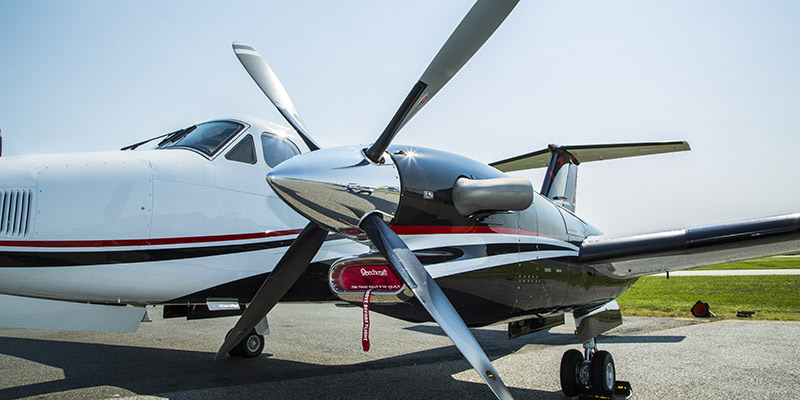

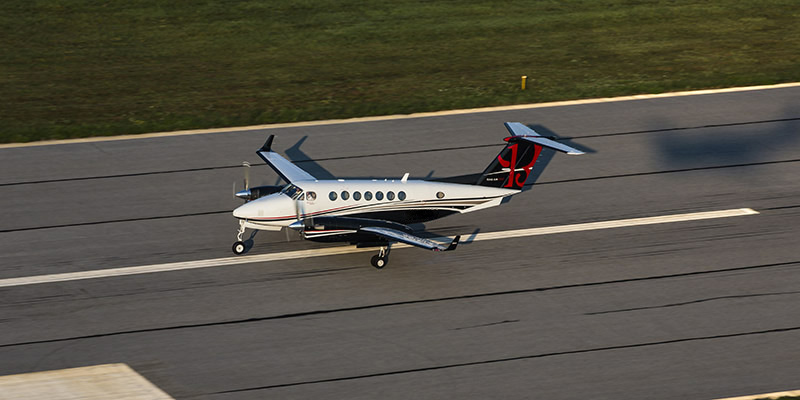

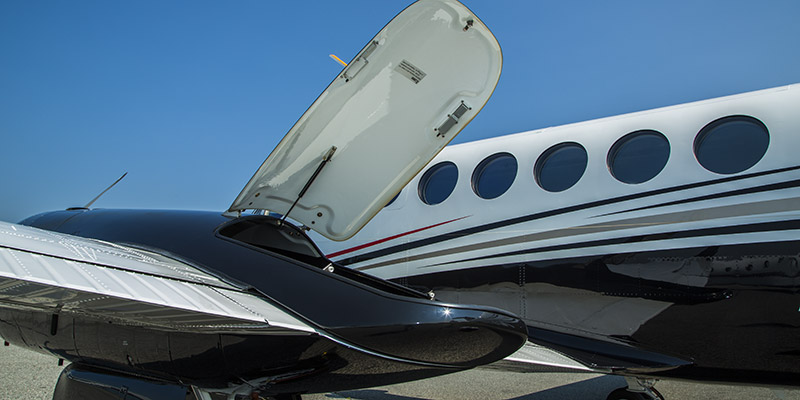

Exterior

Divider

Rugged Meets Regal

Move your mouse over the image to pause.

Interior

divider

Comfort is King

Select one of six new interior schemes and enjoy an artfully designed cabin built to suit your style.

Fly Rugged with the
King Ranch Special Edition King Air 360

divider

Textron Aviation and King Ranch have partnered to create a unique Beechcraft King Air 360 interior and exterior option for customers.

Learn More

Avionics

Divider

Optimum Performance

Optimum Performance

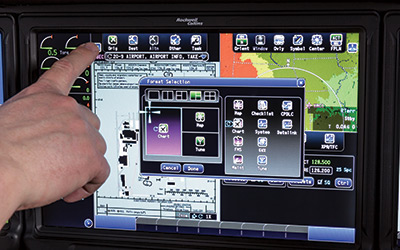

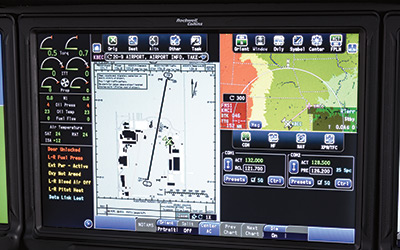

The next King Air 360 turboprop reduces pilot workload with standard features like the IS&S ThrustSense Autothrottle, which delivers precision control for optimized power output, including Overtorque/Overtemp protection for a more efficient takeoff. Digital pressurization automatically schedules cabin pressure on both climb and descent, increasing passenger comfort and further reducing pilot workload.

Learn more about Pro Line Fusion

Standard Features
  • IS&S ThrustSense Autothrottle
  • Digital Pressurization Indication
  • Collins Aerospace Pro Line Fusion Avionics Suite
    • Three 14 inch touchscreen displays
    • Synthetic Vision
    • Graphical Flight Planning
    • Integrated Charts and Maps
  • Engine Indicating and Crew Alerting System (EICAS)
  • Dual Flight Management System (FMS)
  • Multi-Scan Weather Radar System (WXR)
  • Integrated Terrain Awareness and Warning System (ITAWS)
  • Traffic Alert and Collision Avoidance (TCAS II)
  • Automatic Flight Guidance System (AFGS)
  • Dual Navigation and Communication Radios

Specifications

Divider

Performance Without Compromise



Dimensions
Length 46 ft 8 in (14.2 m)
Height 14 ft 4 in (4.4 m)
Wingspan 57 ft 11 in (17.65 m)
Wing Area 310 sq ft (28.8 sq m)
Wheelbase 16 ft 3 in (4.95 m)
Tread 17 ft 2 in (5.23 m)
Cabin Interior
Height 57 in (1.4 m)
Width 54 in (1.37 m)
Length 19 ft 6 in (5.9 m)
Maximum Occupants 11
Baggage Capacity
Weight 1,150 lb (522 kg)
Volume 71.3 cu ft (2.02 cu m)

Weights
Maximum Ramp Weight 15,100 lb (6,849 kg)
Maximum Takeoff Weight 15,000 lb (6,804 kg)
Maximum Landing Weight 15,000 lb (6,804 kg)
Usable Fuel Weight 3,611 lb (1,638 kg)
Usable Fuel Volume 539 gal (2,040 l)
Basic Empty Weight 9,955 lb (4,516 kg)
Useful Load 5,145 lb (2,334 kg)
Maximum Payload 2,545 lb (1,154 kg)
Full Fuel Payload 1,534 lb (696 kg)
Performance
Maximum Cruise Speed 312 ktas (578 km/h)
Maximum Range 1,806 nm (3,345 km)
Takeoff Field Length 3,300 ft (1,006 m)
Landing Distance 2,692 ft (821 m)
Maximum Operating Altitude 35,000 ft (10,668 m)
Maximum Climb Rate 2,700 fpm (823 mpm)
Maximum Limit Speed 263 kias (487 km/h)
Stall Speed 81 kcas (150 km/h)
Powerplant
Manufacturer Pratt & Whitney Canada
Model PT6A-60A
Power Rating 1,050 shp (1,050 shp)
Propeller Manufacturer Hartzell
Description 4 blade, constant-speed, auto feathering, reverse
